The Ultimate Guide to Excel Color Scales – Conditional Formatting

When working with large datasets in Excel, it can be challenging to quickly spot trends, patterns, or outliers. One of my favorite tools for making data visually appealing and easier to interpret is Color Scales. This built-in conditional formatting feature allows me to apply color gradients to a range of cells, instantly transforming raw numbers into a clear, visual representation of data. In this article, we will cover all about color scales in Excel.

Key Takeaways:

• Color Scales in Excel visually highlight high, medium, and low values using color gradients.
• Customizing Color Scales allows for precise data visualization tailored to analysis needs.
• Managing and editing conditional formatting rules keeps data presentation clear and effective.
• Practical use cases include sales reports, financial data, student grades, and project timelines.
• Best practices like using meaningful colors and avoiding overuse enhance readability and accessibility.



Introduction to Color Scales

Understanding the Basics of Conditional Formatting

Conditional formatting is essentially a tool that allows me to apply specific formatting to cells that meet certain criteria. For example, if I’m looking at a dataset of monthly temperature data, I can set a rule that colors the cells in shades of blue for cooler temperatures and red for warmer ones. This is done by creating rules that dynamically change the format based on the cell’s value.

It applies to a range of cells, an Excel table, or even a PivotTable report, though some nuances exist when working with PivotTables. This functionality is not only intuitive to implement but also serves as a vital aid in data interpretation and decision-making.

What Are Color Scales in Excel?

Color Scales in Excel apply different shades of color to a range of cells based on their values. This feature helps me see high, medium, and low values at a glance without manually analyzing the numbers. Excel offers predefined two-color and three-color scales:

• Two-Color Scale – Uses two colors to represent minimum and maximum values.
• Three-Color Scale – Uses three colors to highlight low, middle, and high values.

For example, in a sales report, I can use a green-to-red scale where high sales are green and low sales are red. This helps me quickly identify strong and weak sales regions.



Mastering Color Scales in Excel

Adding a Basic Color Scale to Your Data

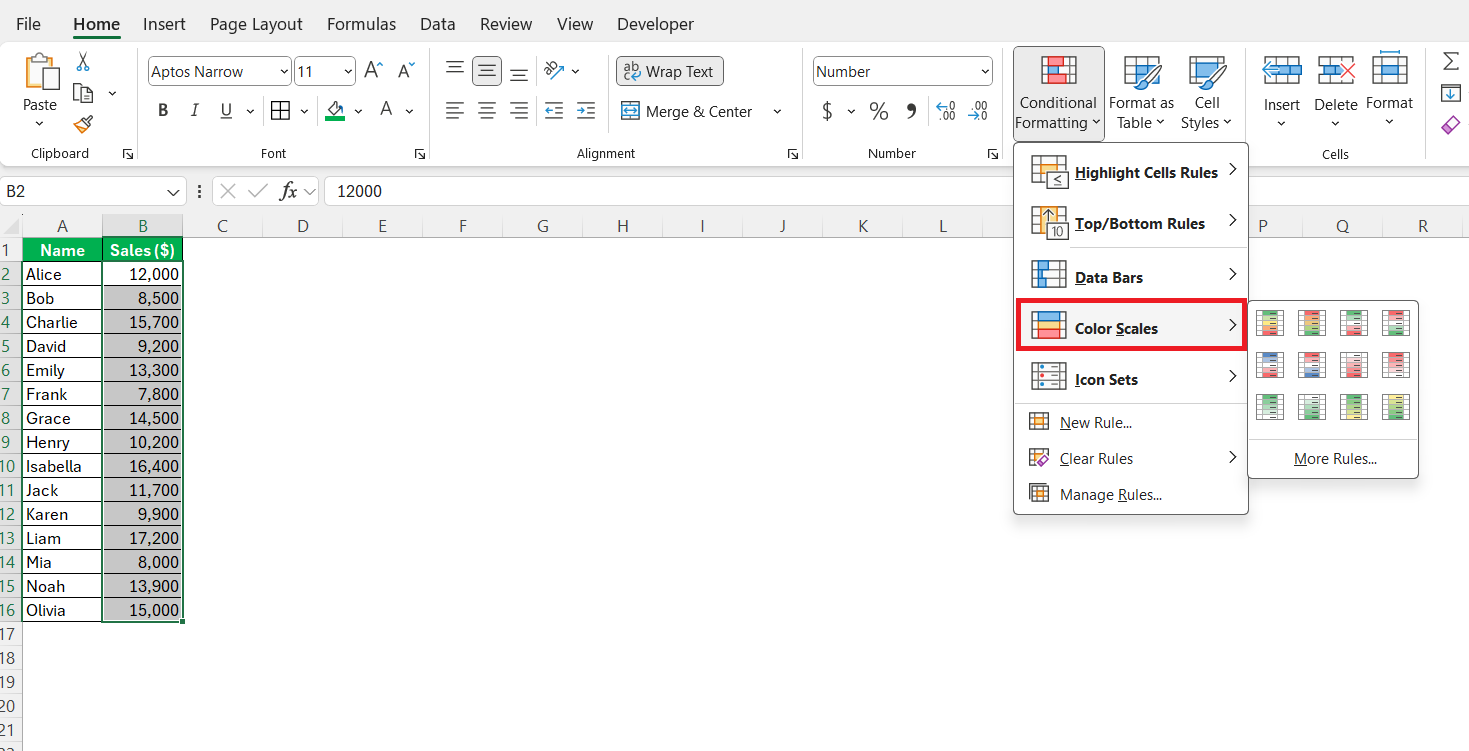

To add a basic color scale, I start by selecting the range of data I intend to analyze. Then, I navigate to the ‘Home’ tab and click on the ‘Conditional Formatting’ button. From there, I select ‘Color Scales’ and choose from the various default two-color or three-color gradients that Excel provides.

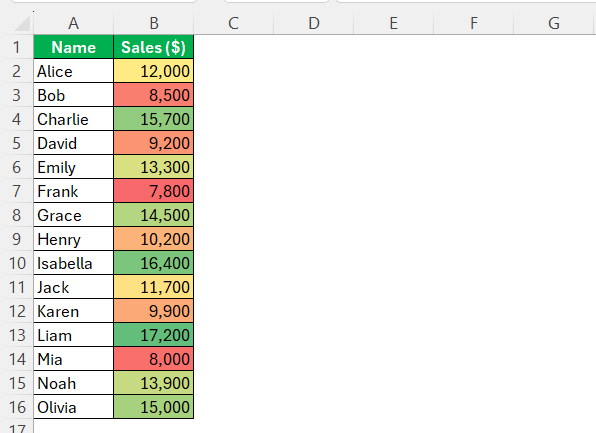

These default options automatically assign colors to the highest and lowest values, with the midpoints smoothly transitioning between them.

It’s a process that takes mere minutes, but the impact on the readability and interpretation of data is substantial.

Creating Custom Color Scales for Enhanced Analysis

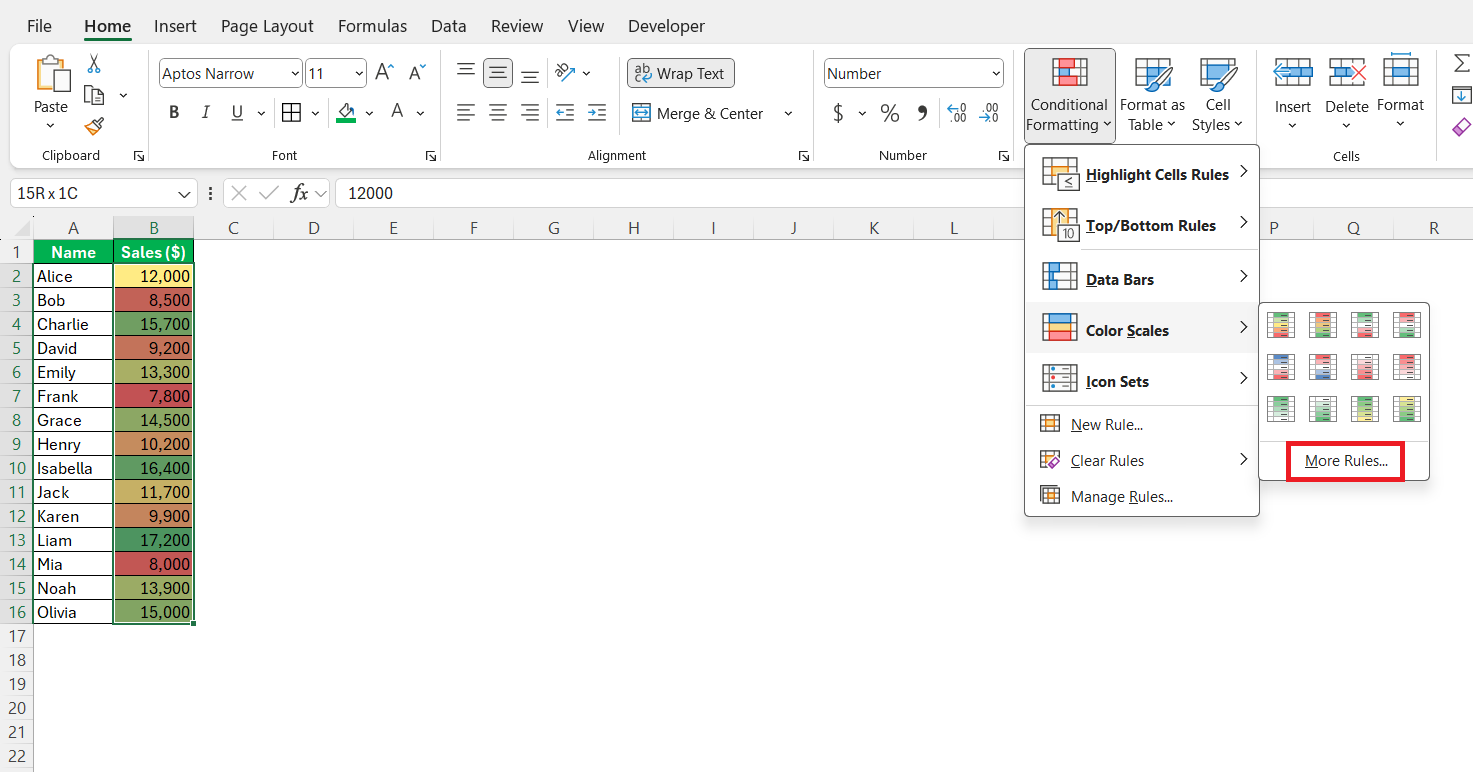

When the default color scales in Excel don’t quite fit the bill for the depth of analysis needed, I create custom color scales. By selecting ‘More Rules’ from the color scales options under ‘Conditional Formatting’, a dialog box appears that provides an array of choices.

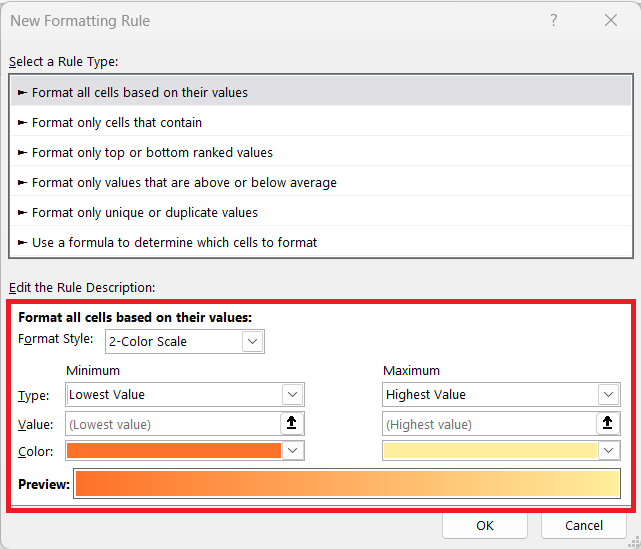

Here, I can tailor a 2-Color or 3-Color Scale to fit precise analysis needs. By setting color points, specifying their type (number, percentile, or formula), and choosing specific colors, I can better highlight trends, patterns, or outliers.

Custom color scales give a higher level of control over data visualization, enhancing analysis through tailored visual cues.



Managing and Editing Your Formatting Rules

Keeping Your Excel Sheets Organized

An organized Excel sheet is the foundation of effective data analysis and presentation. To maintain order, I ensure that all data is neatly categorized, and any conditional formatting applied doesn’t obscure the data’s readability. Labels and headings are kept clear, and I use formatting options like cell styles and themes consistently throughout the workbook.

Moreover, I define named ranges to clarify formulas and manage data more efficiently. Utilizing separate tabs for raw data and analysis keeps the key information accessible while preserving the underlying data intact. Keeping an organized Excel sheet not only facilitates personal ease of use but also prepares the data for presentation or collaboration with others.

Editing and Deleting Conditional Formats

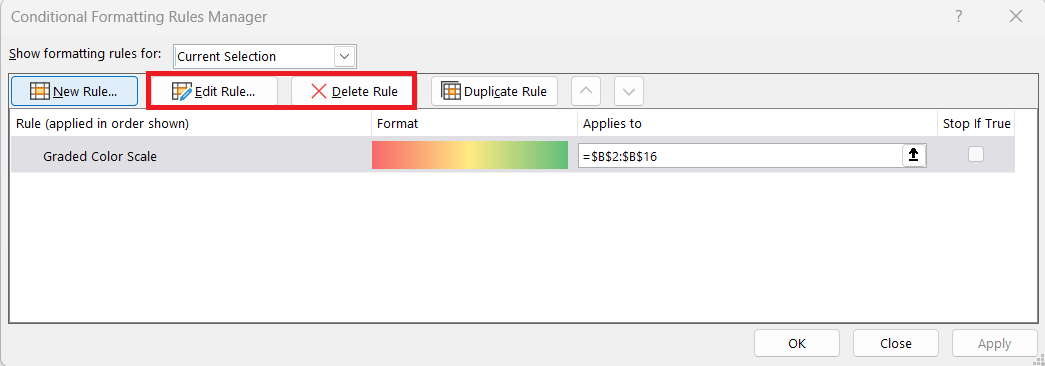

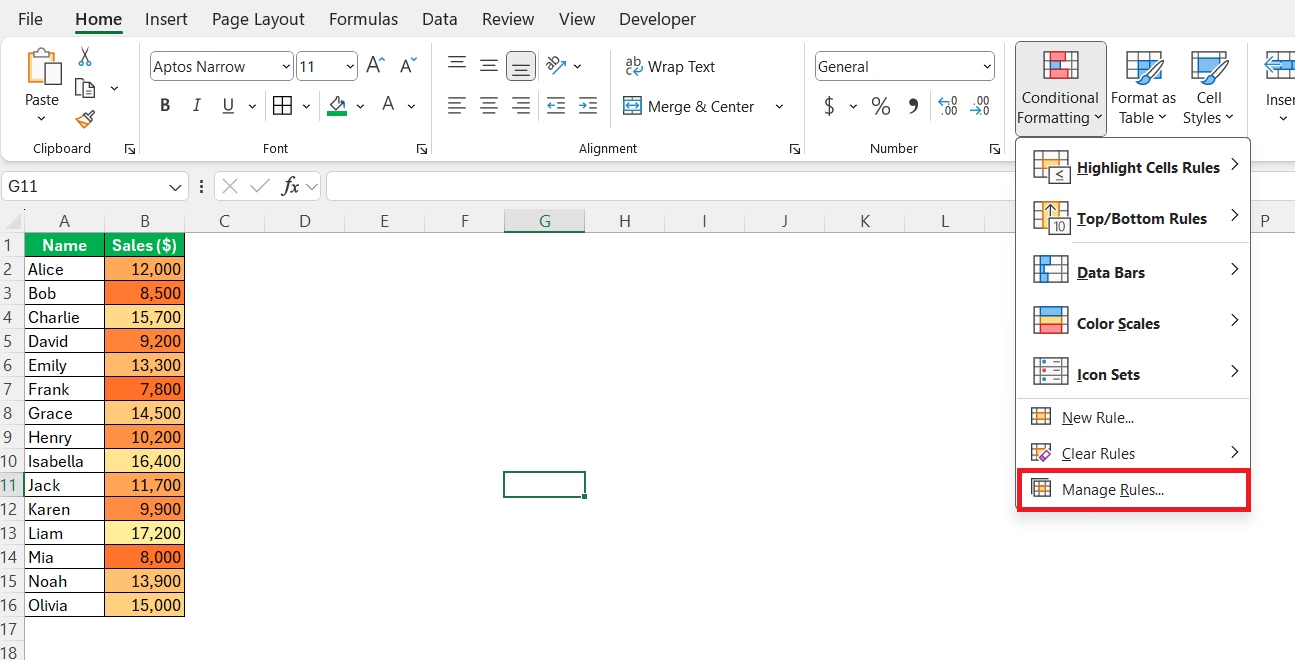

Editing and deleting conditional formats are actions I sometimes need to perform to revamp or refine my spreadsheets. To edit a format, I access ‘Conditional Formatting’ followed by ‘Manage Rules’.

Here, I can adjust any aspect of an existing rule or simply change the formatting style. When it’s time to remove formatting, within the same ‘Manage Rules’ window, I can delete individual rules or clear all formatting from selected cells.

It’s important to regularly review and manage these rules to keep the sheet functioning optimally and ensure that the visual aids remain relevant and helpful.



Practical Use Cases for Color Scales

I often use Color Scales in Excel to make large datasets more visually intuitive. By applying a gradient of colors, I can quickly identify trends and outliers without manually analyzing every cell. Here are some real-world scenarios where Color Scales prove invaluable:

• Sales Reports – I use Color Scales to highlight top-performing and underperforming regions or products. For example, a green-to-red scale helps me see at a glance which areas are exceeding sales targets and which ones need improvement.
• Financial Data – When analyzing revenue, expenses, or profit margins, Color Scales make it easy to spot patterns over time. I can instantly identify periods of growth (shaded in green) and downturns (shaded in red), which helps with forecasting and decision-making.
• Student Grades – Whether I’m working with test scores or overall class performance, Color Scales allow me to distinguish high, average, and low scores effortlessly. A simple three-color scale (green for high, yellow for average, and red for low) helps visualize student performance distribution.
• Project Timelines – When managing deadlines, I use Color Scales to track task progress. For instance, a scale from red (incomplete) to green (completed) provides a quick visual cue for what still needs attention.

No matter the dataset, Color Scales simplify data interpretation, helping me draw insights without diving into complex calculations.



Tips for Using Color Scales Effectively

To make the most of Color Scales in my spreadsheets, I follow these best practices:

• Use Meaningful Colors – Choosing appropriate colors is key. I typically use green for positive values, red for negative ones, and neutral shades like yellow or blue for in-between values. This color logic aligns with intuitive understanding, making data easier to interpret.
• Avoid Overuse – While Color Scales are powerful, too many of them can create visual clutter, making the spreadsheet harder to read. I apply them selectively to key data points rather than the entire dataset.
• Combine with Other Formatting – To enhance my data visualization, I sometimes pair Color Scales with other conditional formatting tools like Data Bars or Icon Sets. This layered approach adds more context and makes my analysis more comprehensive.
• Check for Accessibility – Since not all users perceive colors the same way, I ensure my color choices remain distinguishable for colorblind users. I test different shades and use additional visual indicators, such as bold text or symbols, to reinforce the message.

By following these practices, I ensure that my use of Color Scales enhances my spreadsheets without overwhelming them, making data analysis both efficient and visually engaging



FAQ: Color Scales and Conditional Formatting in Excel

How do I apply a color scale to specific cells in Excel?

To apply a color scale to specific cells in Excel, select the cells you wish to format. Go to the ‘Home’ tab, click ‘Conditional Formatting’, hover over ‘Color Scales’, and choose your desired scale. The color will automatically adjust based on the cell values you’ve selected.

Can I define my own color scales for conditional formatting?

Yes, you can define your own color scales in Excel. Go to ‘Conditional Formatting’, select ‘Manage Rules’, then ‘New Rule’. Choose ‘Format all cells based on their values’, set the color scale options, and define the colors and values for the scale as needed.

What are some alternatives to color scales for representing data?

Alternatives to color scales include data bars, icon sets, and custom cell formats with different fonts or borders. You can also use sparklines for trend visualization within individual cells.

How can I ensure my color-scaled data is accessible to all viewers?

Ensure accessibility by choosing color-blind friendly palettes and adding patterns or labels. Also, consider adjusting brightness and providing numerical values as supplemental information.

What is the shortcut for color scale in Excel?

Excel doesn’t have a dedicated keyboard shortcut for color scales. You must use the ribbon: ‘Home’ tab > ‘Conditional Formatting’ > ‘Color Scales’.d value to the reader.
