Excel Timeline Chart – Free Template and Export Tips

When working on project management, tracking milestones, or visualizing events over time, a timeline chart is one of the best ways to present information. In this guide, I will walk you through the step-by-step process of creating a timeline chart in Excel using a scatter plot and formatting it to look professional.

Key Takeaways:

• An Excel timeline helps visualize events or tasks along a linear time scale.
• A structured dataset with dates and milestones is essential for accuracy.
• Tools like scatter plots, SmartArt, and stacked bar charts can create effective timelines.
• Readability and clarity ensure the timeline is easy to interpret.
• The timeline should align with the purpose, whether for reporting, presentations, or tracking.



Crafting Your Excel Timeline Chart

What is a Timeline Chart?

A timeline chart is a graphical representation that illustrates key events in chronological order. This is particularly useful in project management, business planning, and historical analysis. Excel doesn’t have a direct “Timeline Chart” option, but I can create one using a SmartArt or a in-built template.

Timeline Chart is particularly useful in:

• Project management: Tracking deadlines, deliverables, and progress.
• Business planning: Visualizing company growth, campaigns, and initiatives.
• Historical analysis: Presenting a chronological sequence of events, such as company history or product evolution.

The Essentials of an Excel Timeline

Creating an Excel timeline is about visualizing a series of events or tasks along a linear time scale. The essentials include:

• A structured dataset: Dates, events, or milestones.
• Understanding Excel tools: Using scatter plots, SmartArt, or stacked bar charts to create the timeline.
• Clarity and readability: Ensuring the timeline is easy to interpret and visually appealing.
• Alignment with objectives: Whether for presentations, reporting, or internal tracking, the timeline should serve its purpose effectively.



Steps to Create a Timeline Chart in Excel

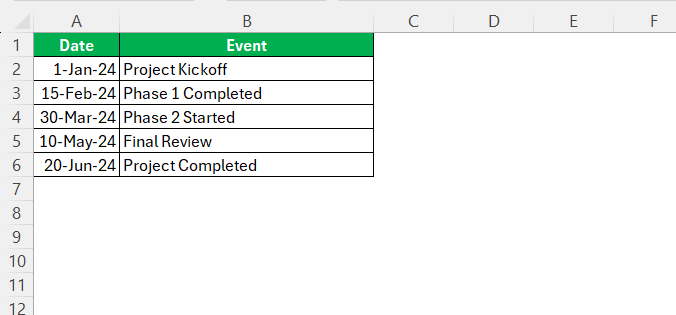

STEP 1: First, I organize my data in two columns: Date (or sequential event numbers) and Event Description.

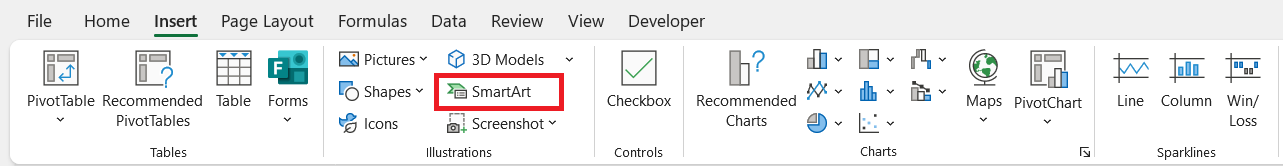

STEP 2: Click on the Insert tab in the Ribbon. In the Illustrations group, click on SmartArt.

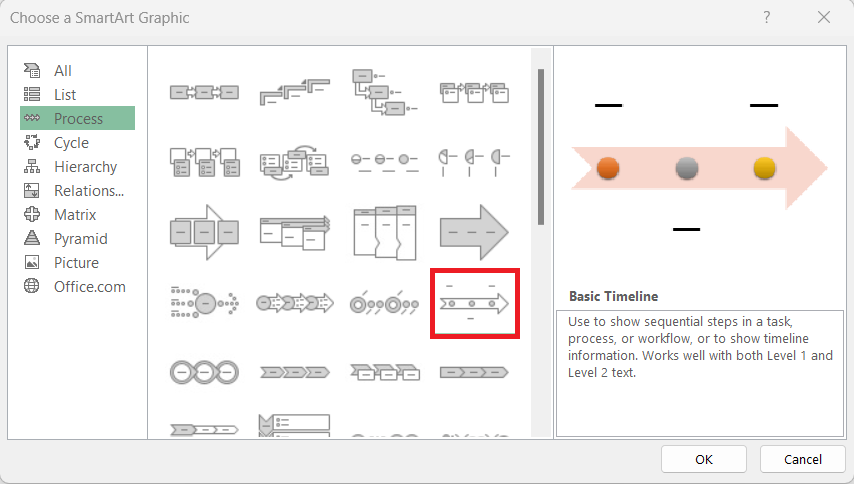

STEP 3: In the SmartArt Graphic window, select Process from the left panel. Scroll down and choose Basic Timeline.

STEP 4: Click OK to insert the SmartArt timeline into your worksheet.

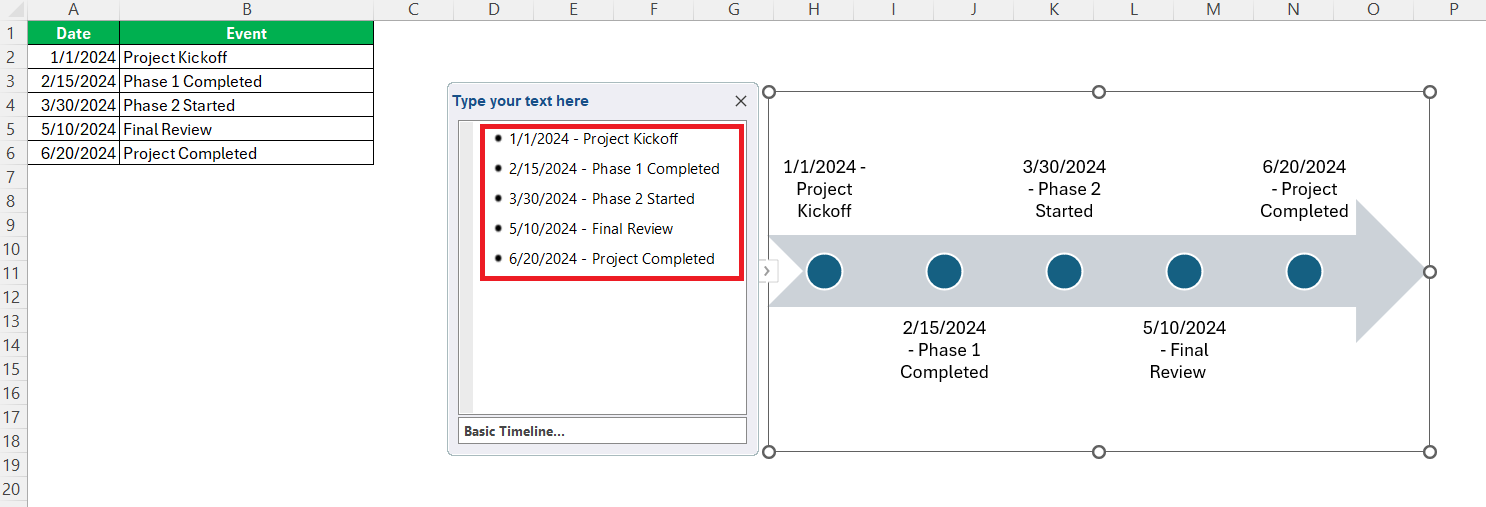

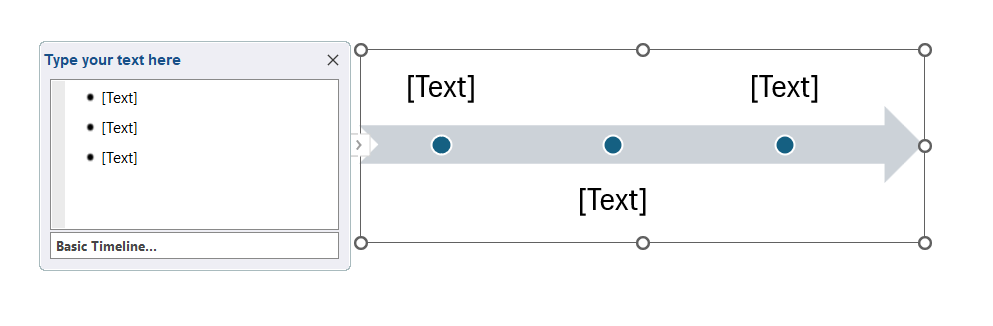

STEP 5: Click on the [Text] placeholders in the SmartArt graphic. Enter the events or milestones for your timeline.

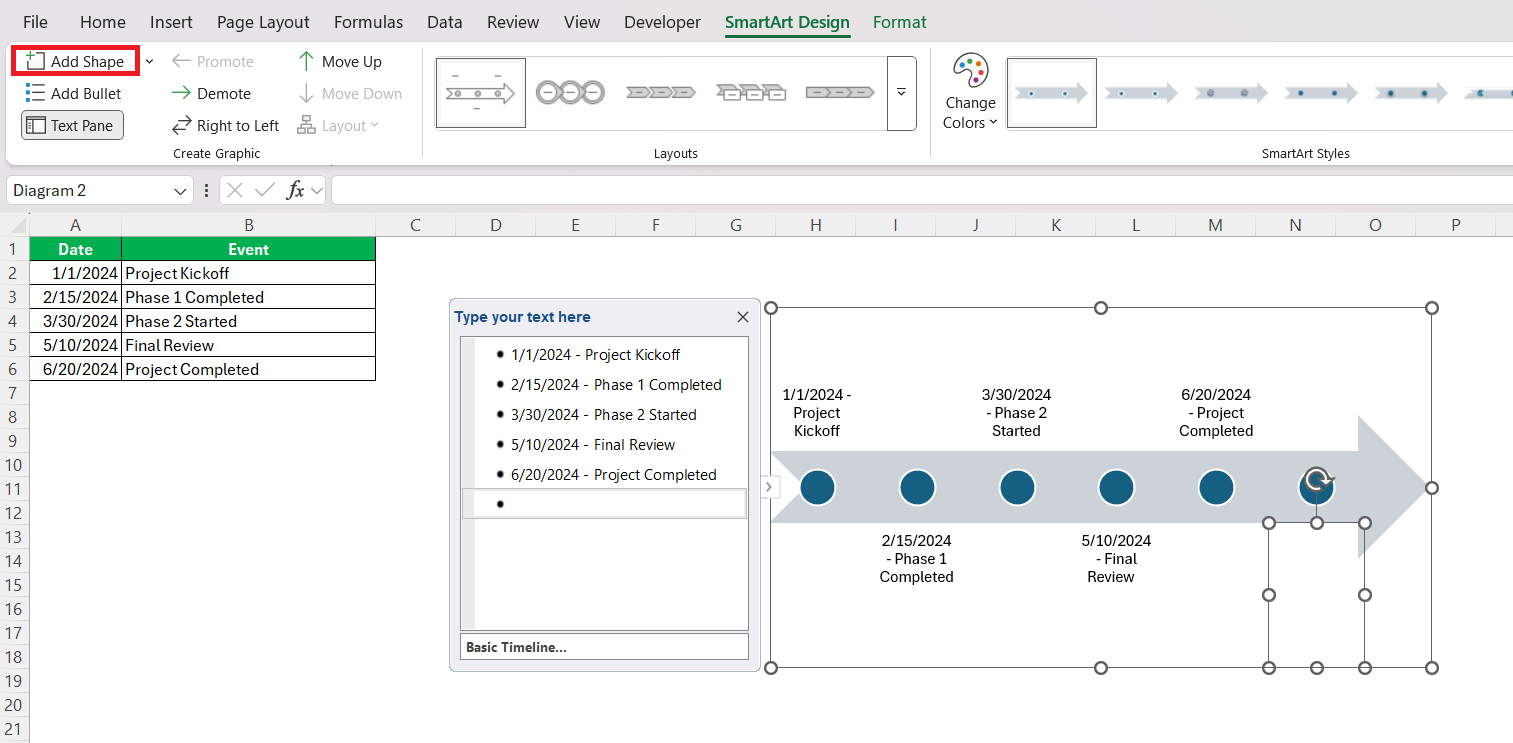

STEP 6: If you need to add more events, click on the SmartArt Tools > Design, then select Add Shape from the SmartArt Design tab.

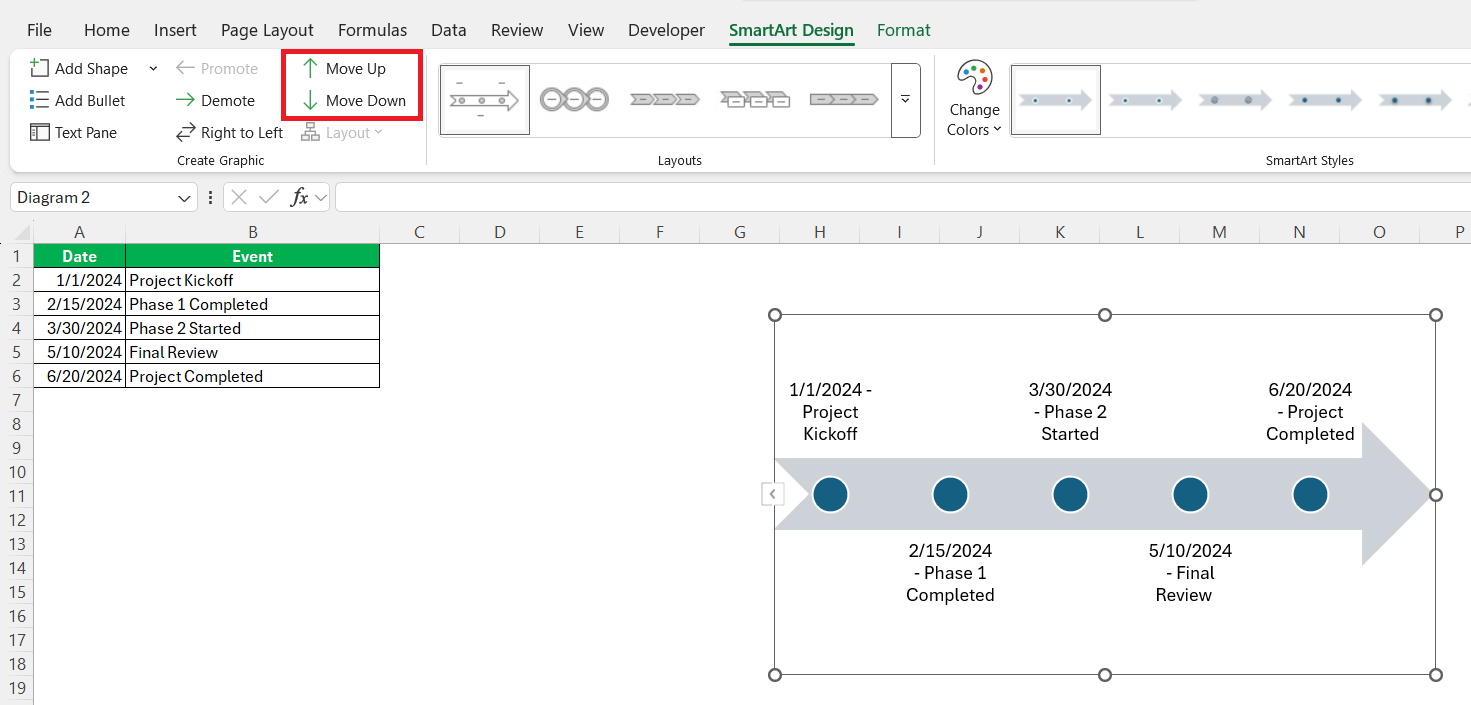

STEP 7: If you need to move date in your timeline, click on the date. Click on SmartArt DesigSmartArt Tools > Design tab, select Move up or Move down.

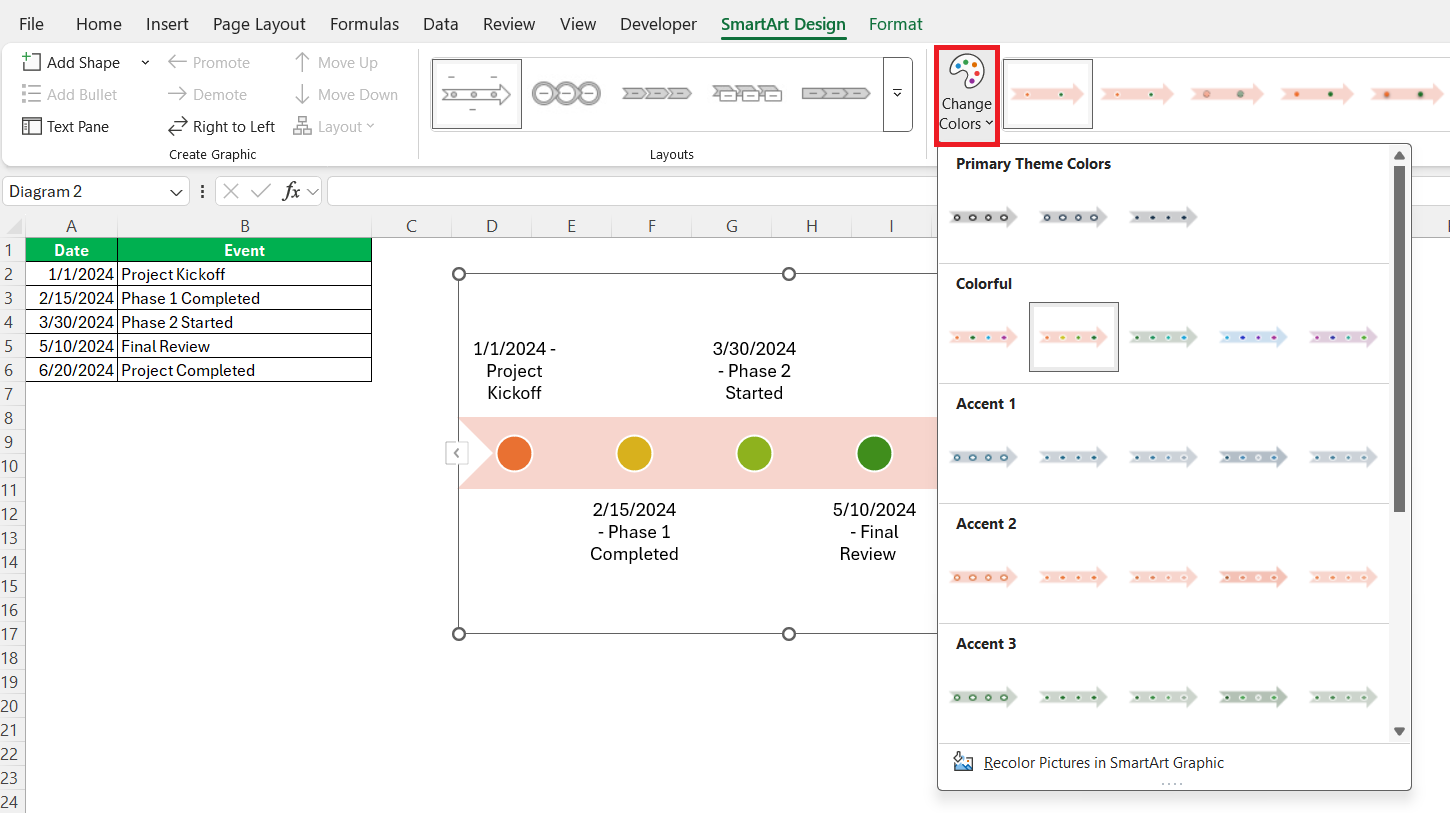

STEP 8: To change the color of your timeline, click on SmartArt Tools > Design tab, click Change Colors.



Harnessing Free Templates for Impact

Navigating Excel’s Template Options

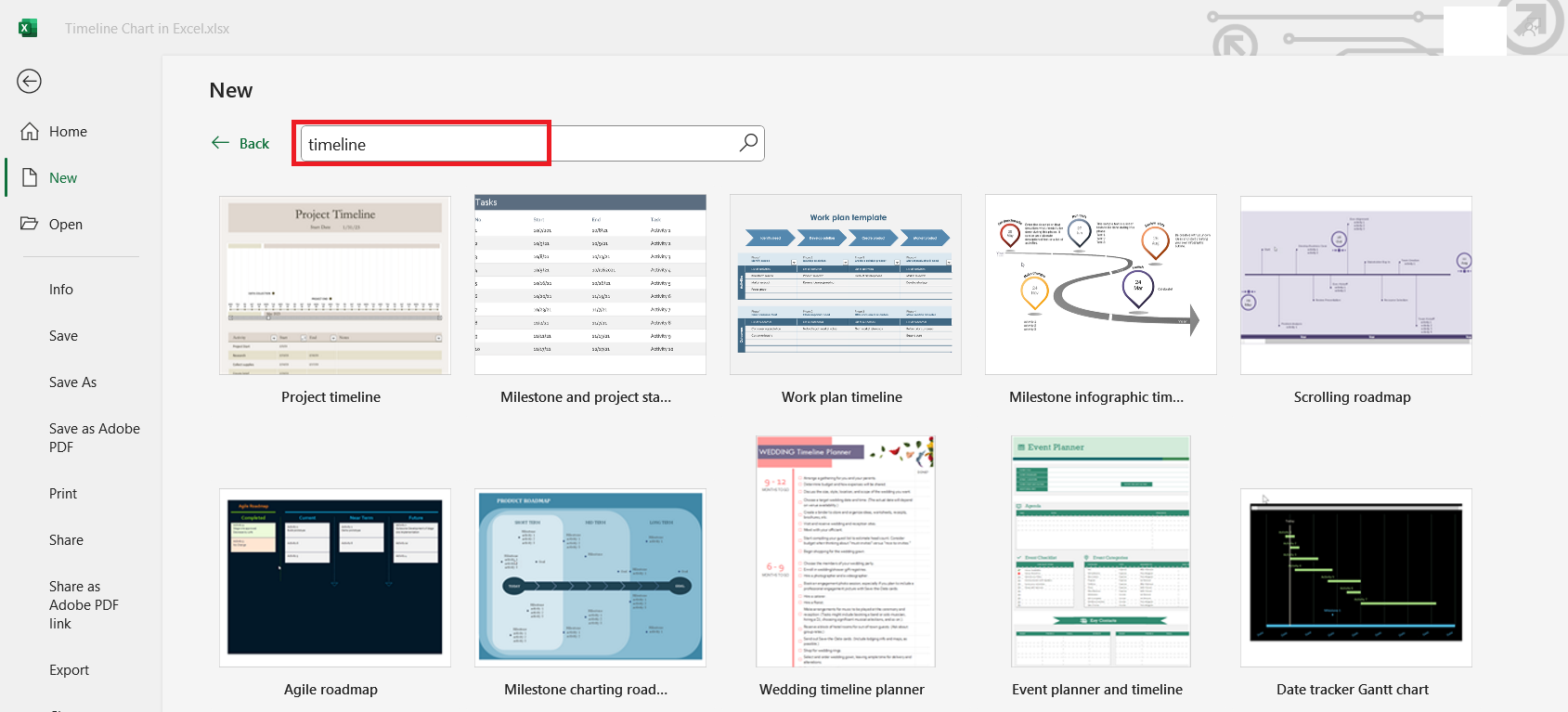

Navigating Excel’s template options is a breeze, especially once you know where to look. Excel offers a range of pre-built templates that can be an excellent starting point. I find them under the File tab; by clicking “New” and typing “timeline” into the search bar, a variety of timeline templates emerge.

It’s simply a matter of selecting the one that suits the scope and scale of the project. Each template can be customized further, so don’t worry if it’s not a perfect fit from the get-go.

Customizing Templates for Your Project Needs

Customizing templates to fit your project requirements often involves a mix of creativity and attention to detail. With a chosen template in hand, you can start by adjusting the time span to reflect your project’s duration. Next, add specific tasks or events and assign dates accordingly.

Remember to consider visual appeal—modify colors, fonts, and shapes to match your organization’s branding or to enhance readability. Finally, don’t forget to add milestones or critical deadlines as distinct markers. For truly bespoke customization, Excel’s drawing tools can be invaluable in adding unique touches like icons or annotations.



Smart Formatting Techniques

Visual Enhancements for Clarity

Visual enhancements are pivotal for ensuring your timeline stands out and communicates effectively. To achieve clarity, focus on using contrasting colors for different phases or categories of tasks. Conditional formatting can be a powerful tool here, highlighting key dates or deadlines automatically based on the data.

Incorporating clear labels and legible fonts ensures that each entry is easily identifiable, while the judicious use of lines can guide the viewer’s eye along the timeline. Additionally, consider the spacing and balance of elements to avoid clutter, which might obscure important information.

Adding Interactivity to Your Timeline

Adding interactivity to your Excel timeline can elevate its functionality considerably. By implementing features like slicers and scroll bars, I allow users to interact with the timeline dynamically, filtering and navigating through different periods or categories. This isn’t just visually impressive; it makes the timeline a more effective analytical tool for exploring project timelines or historical data.

It’s also worth incorporating data validation drop-down lists for consistent data entry and user-friendly navigation. To truly leverage Excel’s interactivity features, consider attaching macros that can enable even more sophisticated interactions and automated updates.



FAQ

What is the best way to create a timeline in Excel?

The best method depends on your needs. For a quick and simple timeline, Excel SmartArt offers built-in designs. If you need more flexibility, a scatter plot or stacked bar chart allows for greater customization and precise formatting. Choosing the right method ensures better visualization of your data.

Can I automate timeline updates in Excel?

Yes, you can automate updates using formulas and dynamic ranges. If your timeline is linked to a data table, structured references and dynamic named ranges help it adjust automatically as new events are added. Using Power Query or VBA can further enhance automation for complex timelines.

How do I make my timeline visually appealing?

Use clear labels, contrasting colors, and adequate spacing between events. Bold fonts, icons, and conditional formatting can improve readability while keeping the design clean and uncluttered. A well-structured timeline ensures easy interpretation and better engagement.

Can I create a Gantt chart instead of a simple timeline?

Yes, a Gantt chart provides a more detailed view of task durations and dependencies. You can create one using a stacked bar chart with start dates and task durations, making it ideal for tracking project progress. Formatting bars by category or priority enhances clarity.

What are common mistakes to avoid when creating a timeline?

Avoid overcrowding the timeline with excessive details, inconsistent date formats, and unclear milestone labels. Ensure data accuracy and maintain a logical event sequence for better readability. Keeping the layout simple and structured improves usability and effectiveness.
