How to Link an Excel Chart to PowerPoint Slides

As someone who frequently creates presentations, I’ve often found myself needing to bring Excel charts into PowerPoint. It’s not just about copying and pasting, though—that approach can lead to issues when the data changes. Instead, linking an Excel chart to a PowerPoint slide ensures that any updates to the Excel data reflect automatically in your presentation. Here, I’ll walk you through the steps on how to link an Excel chart to PowerPoint.

Key Takeaways:

• Linking Excel charts to PowerPoint ensures data stays updated in real-time.
• Use ‘Paste Special’ with ‘Paste Link’ for dynamic connections between Excel and PowerPoint.
• Keep Excel and PowerPoint files in the same folder to avoid broken links.
• Update links in PowerPoint manually or set automatic updates to reflect the latest data.
• Simplify Excel chart designs for clarity and consistent formatting in presentations.



Introduction to Linking Excel Charts with PowerPoint

The Power of Combining Excel Data and PowerPoint Presentations

When we consider the sophistication and analytical prowess of Excel with the crisp and persuasive storytelling capabilities of PowerPoint, we see that combining these applications unleashes a remarkable potential for business presentations.

I’ve noticed that when Excel’s complex data is visualized through PowerPoint, it takes on a new level of clarity and impact, making it more digestible for diverse audiences.

Understanding the Basics Before You Start

Before diving into the integration of Excel charts into PowerPoint slides, it’s critical for us to be grounded in the foundational concepts. We should recognize that this linkage is not just about copying and pasting; it entails a live connection between the two programs.

This means any changes made in the Excel dataset can be reflected in PowerPoint’s visual display, ensuring that the information remains current and aligned across both platforms. Remember, for this to work seamlessly, both the Excel file and the PowerPoint presentation should be appropriately saved and accessible, allowing updates to propagate as required.



Preparing Your Excel Charts for Linking

Selecting the Right Data for Your Presentation Needs

Choosing the correct set of data for a presentation is pivotal. We need to curate our data meticulously to ensure that it aligns with the narrative of the presentation and serves the intended communication goals.

This means considering what insights we aim to convey and selecting only the most relevant datasets and charts that will support our story without overwhelming our audience. Simplicity and relevance should drive our decision-making here, as extraneous data can distract and confuse rather than inform.

Perfecting Your Excel Chart Design

To ensure my Excel chart makes the intended impact when linked to PowerPoint, I always take time to refine the design before linking. This includes choosing appropriate chart types that best represent the data, applying a unifying color scheme aligned with the presentation’s theme, and using data labels and annotations for clarity.

I’m also mindful of the size and scale of the chart to ensure readability once it’s displayed in PowerPoint. A well-designed chart should communicate key insights at a glance, so simplifying the design to avoid cluttering is just as crucial as including important data points.



How to Link an Excel Chart to PowerPoint

Method 1: Embedding Excel Charts Directly into PowerPoint Slides

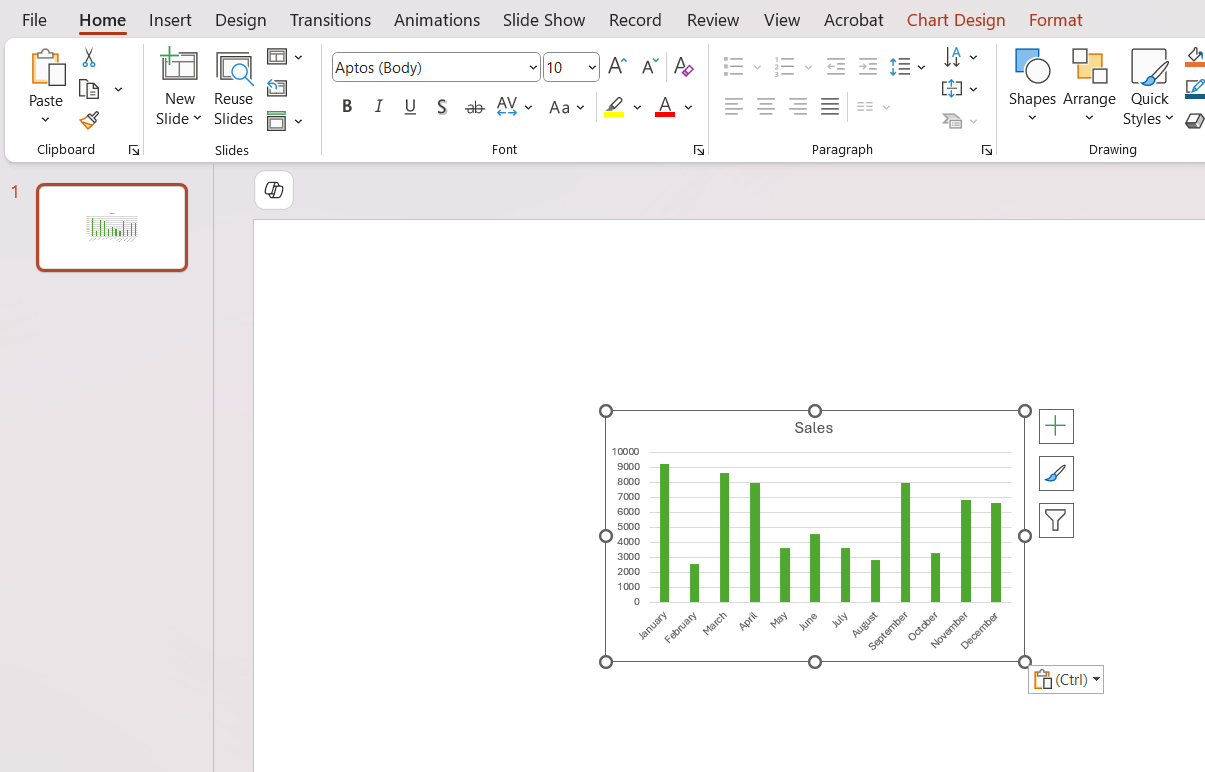

Embedding an Excel chart directly into a PowerPoint slide has its benefits. It creates a static image of the chart within the slide, preserving the data visualization as it was at the moment of embedding. To start, open the Excel workbook, select the chart, copy it, and then paste it into the preferred slide in PowerPoint.

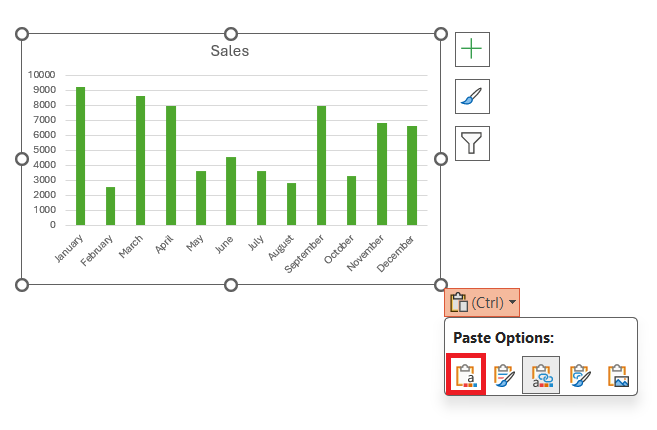

While pasting, I choose ‘Embed’ if I want to maintain the Excel chart’s original look.

This method suits presentations that don’t require updates after the chart has been embedded, providing a snapshot in time of my data.

Method 2: Utilizing Paste Special for a Dynamic Connection

For a live, dynamic link between Excel and PowerPoint, I recommend using the ‘Paste Special’ feature. It allows for real-time data updates in Excel to reflect in the PowerPoint charts. Here’s how I do it:

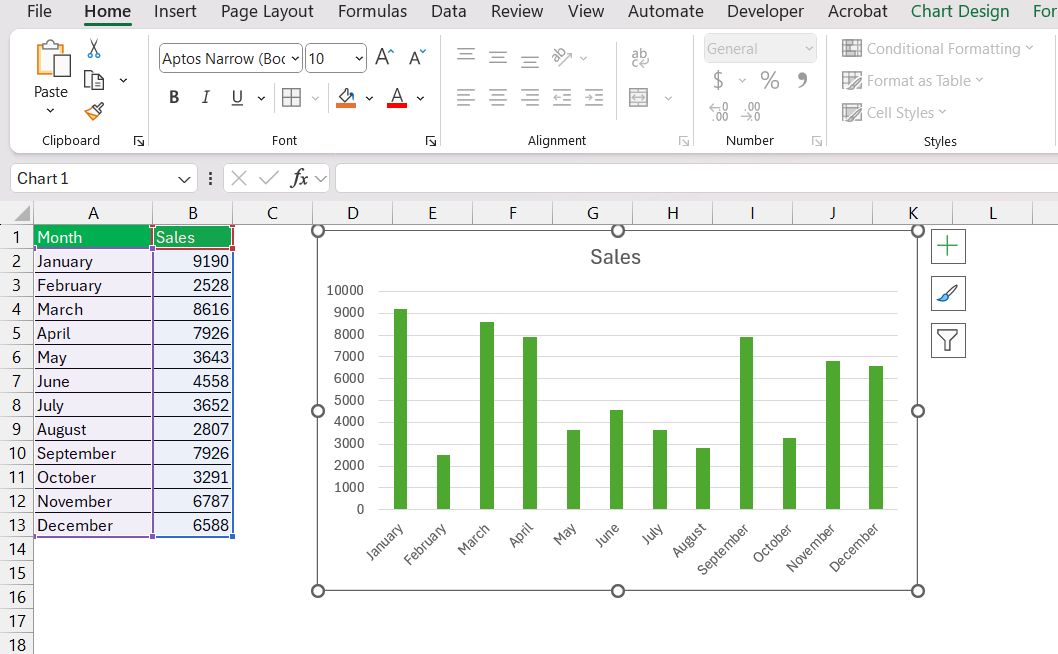

STEP 1: Open the Excel file and select the chart or range.

STEP 2: Copy the selection (using CTRL+C or right-click and hit ‘Copy’).

STEP 3: Switch over to PowerPoint and navigate to the slide where the chart is needed.

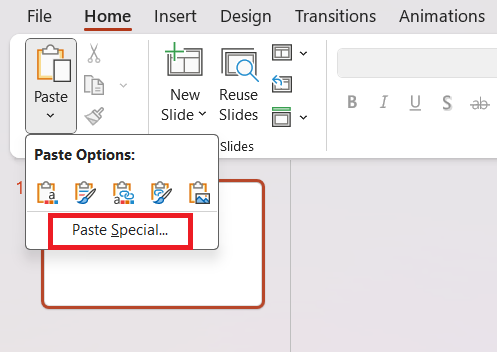

STEP 4: On the Home tab, click the lower part of the ‘Paste’ button and choose ‘Paste Special’.

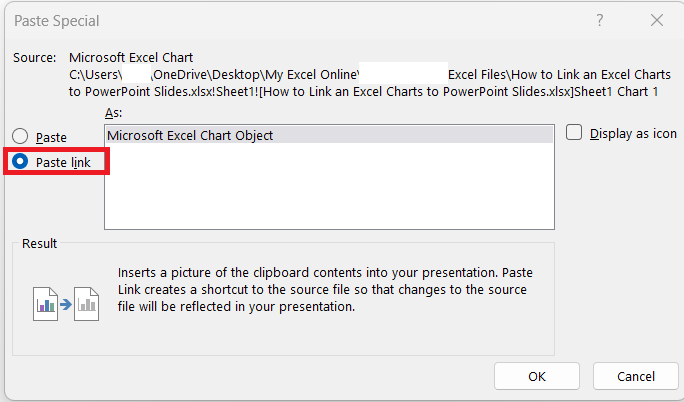

STEP 5: In the dialog box, select ‘Paste Link’ to create a dynamic connection.

This method keeps the data in PowerPoint updated with Excel, thereby ensuring the presentation remains current up to the last minute. However, remember that since the chart is linked, the Excel file must be accessible and unaltered for the link to work properly during the presentation.



Tips for Managing Linked Charts

Keep Files Together

I’ve learned to always keep the Excel file and PowerPoint presentation in the same folder. If I move one without the other, the link can break, causing frustration during crunch time.

Update Links

When I open a PowerPoint presentation with linked charts, PowerPoint typically prompts me to update the links. I always click Update Links to ensure I’m showing the latest data.

If I ever need to update links manually, here’s how I do it:

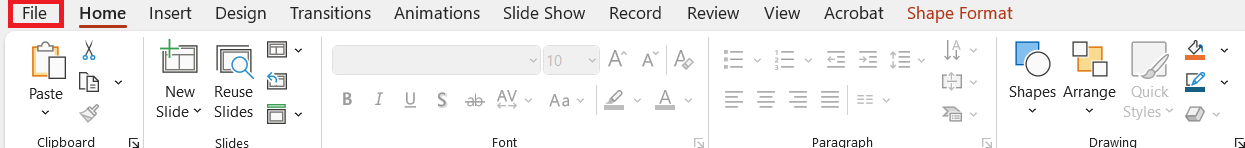

STEP 1: Go to the File tab in PowerPoint.

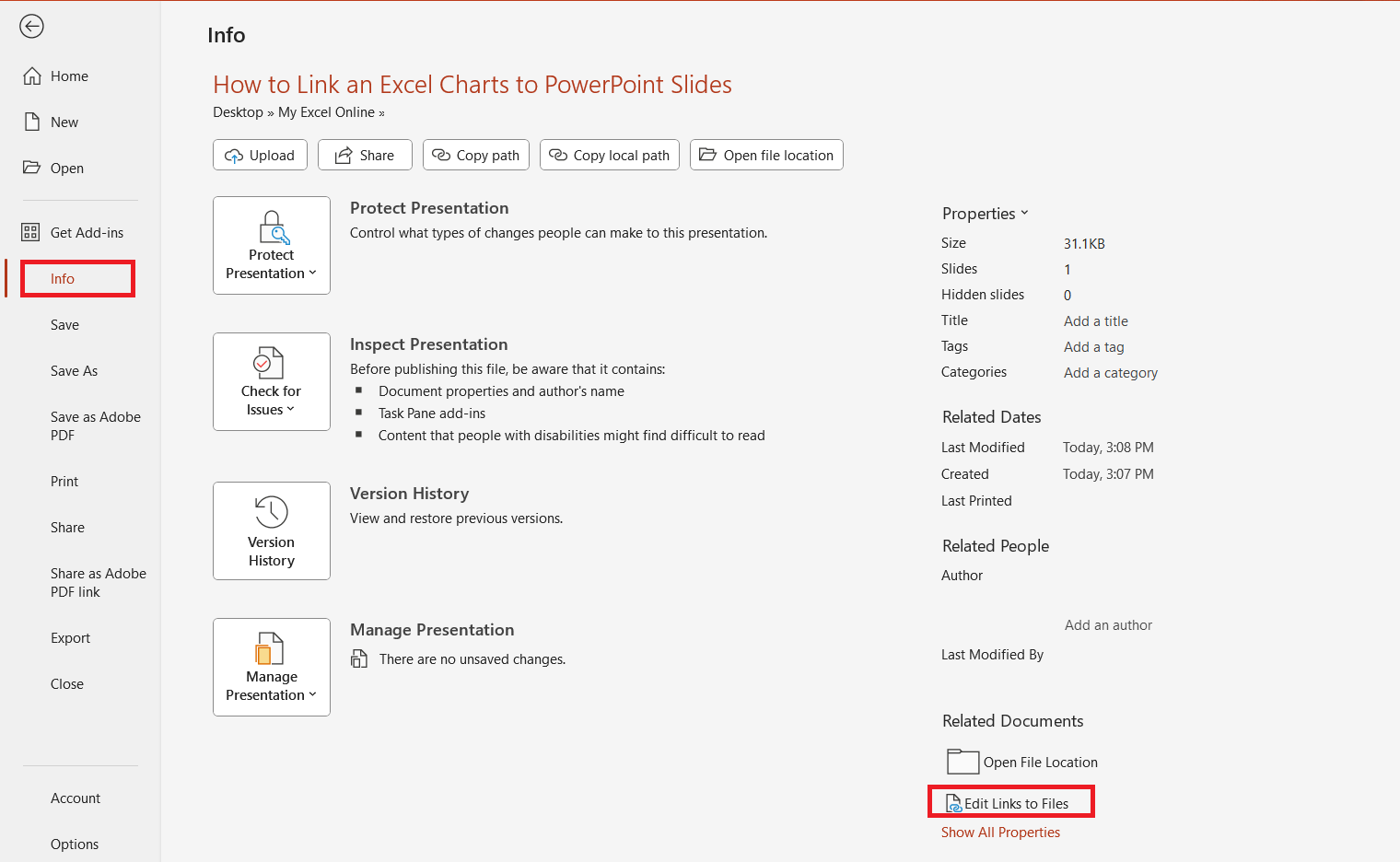

STEP 2: Select Info, then click Edit Links to Files.

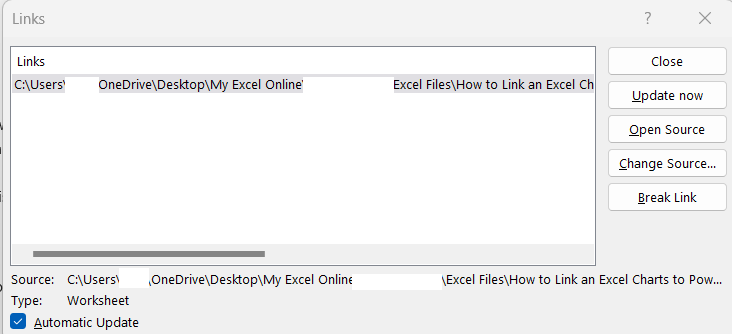

STEP 3: From here, I can update, change, or break links as needed.



Common Challenges and How to Overcome Them

• Broken Links – If I accidentally move the Excel file, I get a dreaded “file not found” message. To fix this, I click Edit Links to Files in PowerPoint and re-link the chart to the Excel file.

• Outdated Data – If I notice the data isn’t updating, I double-check that the Excel file is open and that I’ve clicked Update Links in PowerPoint.
• Formatting Changes – Sometimes, the chart’s formatting looks different in PowerPoint. In these cases, I update the chart’s design in Excel and then refresh it in PowerPoint.



FAQ: Mastering Excel to PowerPoint Links

How to link a chart in Excel?

To link a chart in Excel, first, I ensure the chart is ready and represents the data accurately. I then copy the chart by right-clicking it and selecting ‘Copy’ or pressing CTRL+C. In PowerPoint, I select the slide where the chart should go, click ‘Paste’ from the Home tab, and then choose one of the paste options with ‘Link Data’ to establish the connection.

How can I ensure my linked charts update automatically?

To ensure that my linked charts update automatically, I always check that the ‘Update links’ feature in PowerPoint is set to automatic. This can typically be found under File > Options > Advanced > Link handling. If my presentation needs to stay current with the latest data changes, I’ll also opt for embedding the chart as a link rather than just a static image when pasting from Excel to PowerPoint.

What are the benefits of linking Excel and PowerPoint?

Linking Excel and PowerPoint streamlines data presentation. Key benefits include real-time updates—changes in Excel reflect instantly in PowerPoint—and heightened accuracy, as direct links reduce manual entry errors. It also saves a lot of time, as updating data in one central location cascades the changes throughout the presentation. Additionally, linking fosters consistency across reports and presentations, ensuring that all stakeholders have the most current information at hand.

Can I link an existing PowerPoint element to a new Excel data range?

Yes, I can establish a link between an existing PowerPoint element and a new Excel data range. To do this, I go to Excel, select the new range I want to use, and either use the ‘Link to PowerPoint’ feature from think-cell or switch to PowerPoint and use ‘Paste Special’ to paste the Excel data as a link into the existing chart or table. This updates the PowerPoint element with the new data while retaining its original formatting and position.

How do I identify and manage all the links in my presentation?

To identify and manage all the links in my presentation, I use the Links Overview pane in Templafy or go to the Data Links dialog through the Tools menu in PowerPoint. This displays a list of all slides with linked elements and allows me to navigate, update, or remove links. By keeping track of the sources and last updates, I can efficiently manage the links, ensuring data integrity and refreshment.
